生成器

生成器模式是一种创建型设计模式， 使你能够分步骤创建复杂对象。 该模式允许你使用相同的创建代码生成不同类型和形式的对象。

目的

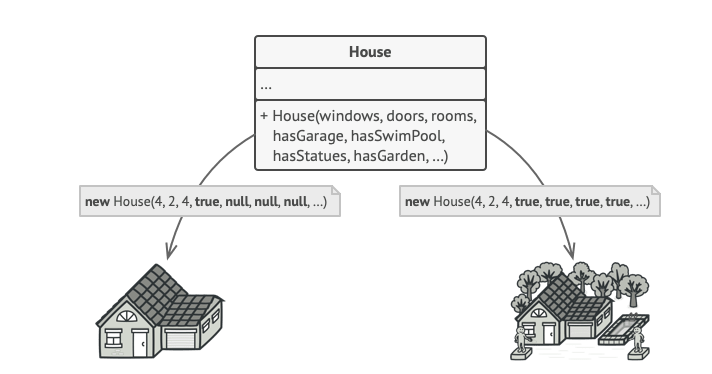

对于一个包含复杂对象，在对其构造的时候可能包含很多部分，例如盖房子，可能会有窗户，门，游泳池，车库….等很多部件。创建不同类型的房子可能需要构建不同的部件。例如有的房子有游泳池，有的没有，有的有车库有的没有。对于这种情况，虽然可以使用包含很多部件的初始化函数来构造，例如：

通常情况下， 绝大部分的参数都没有使用， 这使得对于构造函数的调用十分不简洁。 例如， 只有很少的房子有游泳池， 因此与游泳池相关的参数十之八九是毫无用处的。

生成器模式建议将对象构造代码从产品类中抽取出来， 并将其放在一个名为生成器的独立对象中。该模式会将对象构造过程划分为一组步骤， 比如 build­Walls创建墙壁和 build­Door创建房门创建房门等。 每次创建对象时， 你都需要通过生成器对象执行一系列步骤。 重点在于你无需调用所有步骤， 而只需调用创建特定对象配置所需的那些步骤即可。

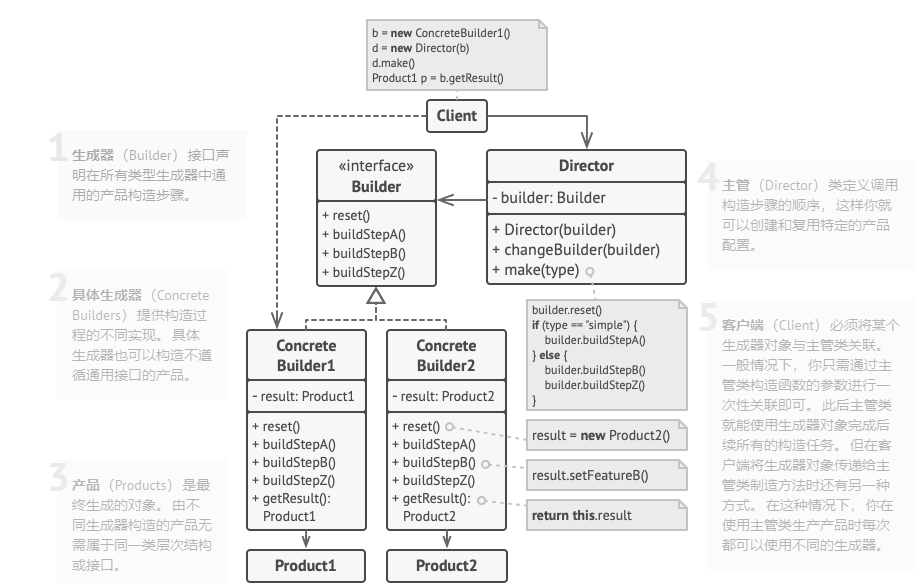

结构

总的来说，就是产品（对象）的构造从他自己的构造函数中独立出来，使用一个单独的 bullder类，来管理对象的构造。如果对象需要产品A，就调用构造A部件的函数。并且最后还可以通过一个主管类来封装构造特定对象的步骤。

/**
 * It makes sense to use the Builder pattern only when your products are quite
 * complex and require extensive configuration.
 *
 * Unlike in other creational patterns, different concrete builders can produce
 * unrelated products. In other words, results of various builders may not
 * always follow the same interface.
 */

class Product1{
    public:
    std::vector<std::string> parts_;
    void ListParts()const{
        std::cout << "Product parts: ";
        for (size_t i=0;i<parts_.size();i++){
            if(parts_[i]== parts_.back()){
                std::cout << parts_[i];
            }else{
                std::cout << parts_[i] << ", ";
            }
        }
        std::cout << "\n\n";
    }
};


/**
 * The Builder interface specifies methods for creating the different parts of
 * the Product objects.
 */
class Builder{
    public:
    virtual ~Builder(){}
    virtual void ProducePartA() const =0;
    virtual void ProducePartB() const =0;
    virtual void ProducePartC() const =0;
};
/**
 * The Concrete Builder classes follow the Builder interface and provide
 * specific implementations of the building steps. Your program may have several
 * variations of Builders, implemented differently.
 */
class ConcreteBuilder1 : public Builder{
    private:

    Product1* product;

    /**
     * A fresh builder instance should contain a blank product object, which is
     * used in further assembly.
     */
    public:

    ConcreteBuilder1(){
        this->Reset();
    }

    ~ConcreteBuilder1(){
        delete product;
    }

    void Reset(){
        this->product= new Product1();
    }
    /**
     * All production steps work with the same product instance.
     */

    void ProducePartA()const override{
        this->product->parts_.push_back("PartA1");
    }

    void ProducePartB()const override{
        this->product->parts_.push_back("PartB1");
    }

    void ProducePartC()const override{
        this->product->parts_.push_back("PartC1");
    }

    /**
     * Concrete Builders are supposed to provide their own methods for
     * retrieving results. That's because various types of builders may create
     * entirely different products that don't follow the same interface.
     * Therefore, such methods cannot be declared in the base Builder interface
     * (at least in a statically typed programming language). Note that PHP is a
     * dynamically typed language and this method CAN be in the base interface.
     * However, we won't declare it there for the sake of clarity.
     *
     * Usually, after returning the end result to the client, a builder instance
     * is expected to be ready to start producing another product. That's why
     * it's a usual practice to call the reset method at the end of the
     * `getProduct` method body. However, this behavior is not mandatory, and
     * you can make your builders wait for an explicit reset call from the
     * client code before disposing of the previous result.
     */

    /**
     * Please be careful here with the memory ownership. Once you call
     * GetProduct the user of this function is responsable to release this
     * memory. Here could be a better option to use smart pointers to avoid
     * memory leaks
     */

    Product1* GetProduct() {
        Product1* result= this->product;
        this->Reset();
        return result;
    }
};

/**
 * The Director is only responsible for executing the building steps in a
 * particular sequence. It is helpful when producing products according to a
 * specific order or configuration. Strictly speaking, the Director class is
 * optional, since the client can control builders directly.
 */
class Director{
    /**
     * @var Builder
     */
    private:
    Builder* builder;
    /**
     * The Director works with any builder instance that the client code passes
     * to it. This way, the client code may alter the final type of the newly
     * assembled product.
     */

    public:

    void set_builder(Builder* builder){
        this->builder=builder;
    }

    /**
     * The Director can construct several product variations using the same
     * building steps.
     */

    void BuildMinimalViableProduct(){
        this->builder->ProducePartA();
    }

    void BuildFullFeaturedProduct(){
        this->builder->ProducePartA();
        this->builder->ProducePartB();
        this->builder->ProducePartC();
    }
};
/**
 * The client code creates a builder object, passes it to the director and then
 * initiates the construction process. The end result is retrieved from the
 * builder object.
 */
/**
 * I used raw pointers for simplicity however you may prefer to use smart
 * pointers here
 */
void ClientCode(Director& director)
{
    ConcreteBuilder1* builder = new ConcreteBuilder1();
    director.set_builder(builder);
    std::cout << "Standard basic product:\n";
    director.BuildMinimalViableProduct();

    Product1* p= builder->GetProduct();
    p->ListParts();
    delete p;

    std::cout << "Standard full featured product:\n";
    director.BuildFullFeaturedProduct();

    p= builder->GetProduct();
    p->ListParts();
    delete p;

    // Remember, the Builder pattern can be used without a Director class.
    std::cout << "Custom product:\n";
    builder->ProducePartA();
    builder->ProducePartC();
    p=builder->GetProduct();
    p->ListParts();
    delete p;

    delete builder;
}

int main(){
    Director* director= new Director();
    ClientCode(*director);
    delete director;
    return 0;
}
